DFD

DFD is a flowchart editor and interpreter designed for Windows and Linux systems, letting programmers and software developers visualize and test algorithms directly within the application.

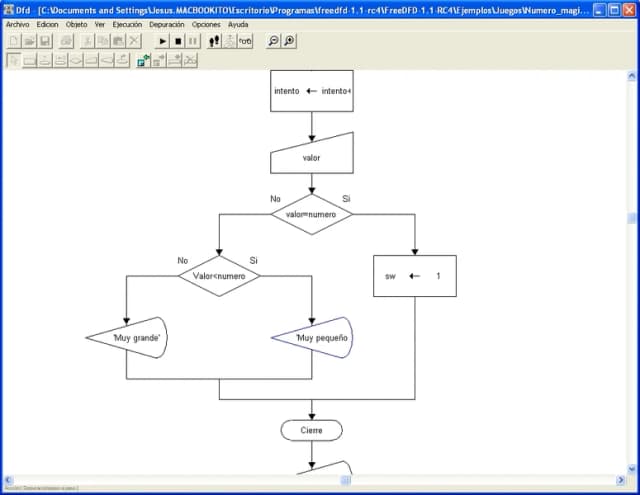

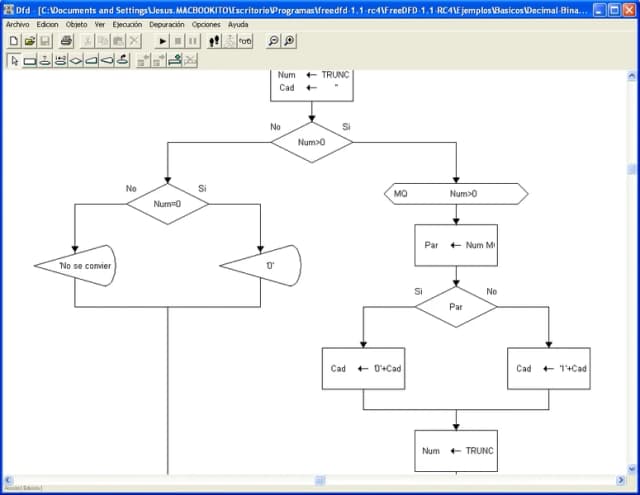

Flowcharts are essential tools in software development—they map out the logical steps and decision points that guide program execution. With this editor, you can build flowcharts ranging from simple sequences to complex multi-branch logic, then run and debug them immediately without switching between tools. The execution happens inside the same interface, making it easy to verify that your algorithm behaves as intended.

The app supports the full range of flowchart elements: variable assignments, conditional branches (decision diamonds), loops, process blocks, and output operations. You can insert these components quickly and arrange them visually, then trace through execution to identify logic errors or test different scenarios. Debugging directly within the application saves time compared to implementing code first and troubleshooting later.

For new users, an integrated tutorial helps you get started with the core workflow. Whether you're learning algorithm design, documenting existing processes, or prototyping business logic before coding, the visual approach makes your intent clear and easy to communicate to others.

DFD runs on Windows natively and can be used on Linux systems with Wine compatibility. Download DFD today and streamline the way you design, visualize, and validate algorithms.
